PAK
04.
PAK

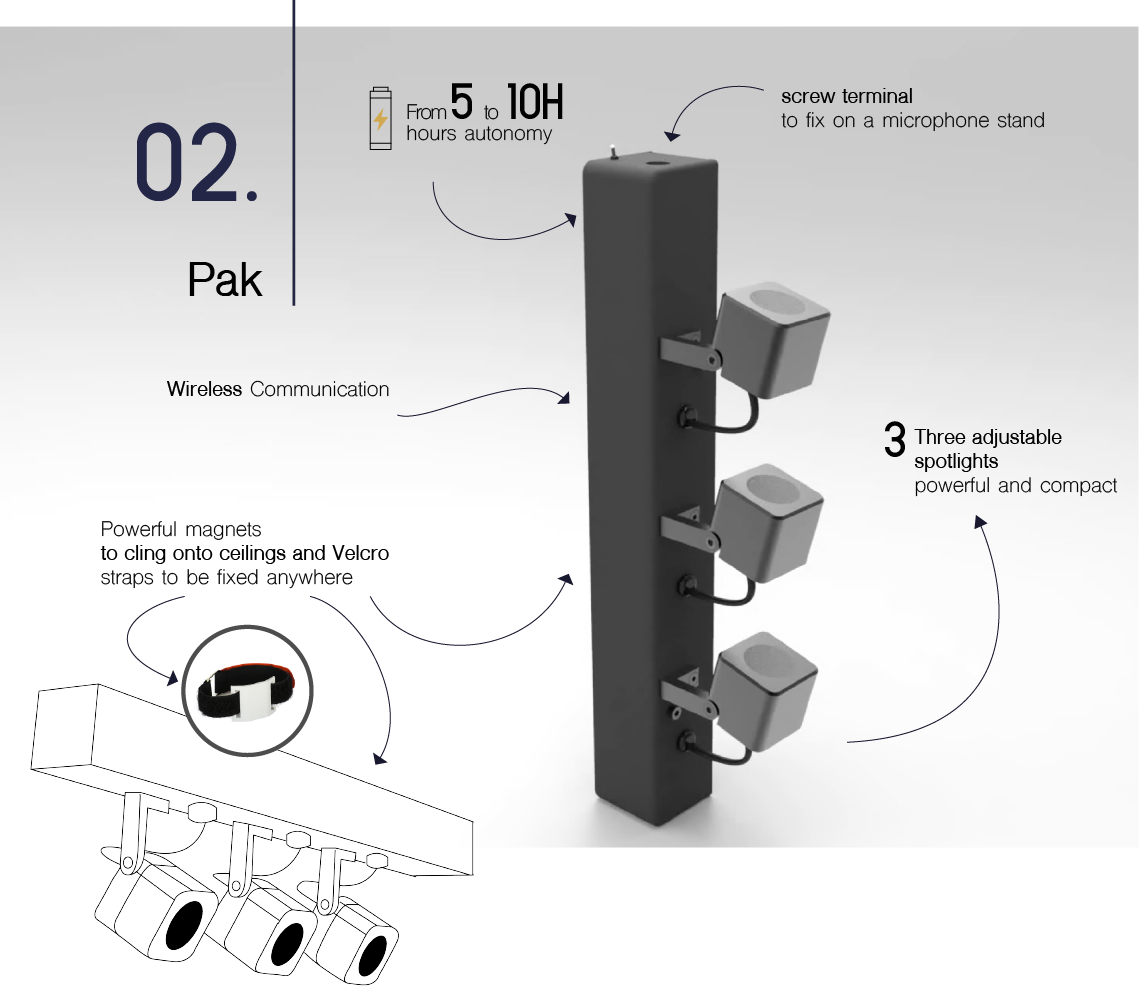

Multipurpose light
Mobile lighting and performance in all circumstances!
1 5 to 10h automomy
2 Can be fixed to anything
3 Wireless DMX HF on option
Lighting source
Powerful and efficient lighting
Long battery life
All of our products are battery operated
Wireless
No connecting cables to get in your way
Made in France
Manufactured in our workshop in Montpellier
Discover PAK on video
Materials
- Housing : PVC 3mm
- Spotlight : Anodized black aluminium
Finition
- Black
Electric power
- 6W (3x2W)
Technology
- LED Cree 3W 500mA
Lighting source
- 500 lumens
External charger
- 90-230V - 12,6V DC
- Connector Power jack 2mm
- Charging time : 3-4h
Autonomy
- 5h at 100% et 12h at 50%
Temperature range
- From 0°C to +40°C
LED usage time
- 50 000h
IP class
- IP20
- IK07
Dimensions
- L 270 (without antenna) x W 36 x D 36mm
Weight
- 450g
Charge voltage
- 12,6V DC
Norm
- CE, EN60598-1
Class
- III
Battery and autonomy
- 2800mA/H
Option upon order
Colour temperature
- Standard : 3000K (neutral white)
- Upon order : 4000K (warm white)
Optical lenses
- Standard : 26°
- Upon order : 6° / 16° / 46° / asymmetrical 38°x21°
DMX HF
- Integrated receiver
- Setting address by transmitter
- Frequency 2,4GHz
- 3 DMX channels : Dimmer, strobe, white
Accessories
DMX HF Transmitter
• DMX in and out on XLR 3
• Distance 600m maximum between transmitter and receivers
• DMX setting of the receivers from 1 to 512 via menu “Assign” of the transmitter • Diversity 21 frequencies, 2,4GHz
• no delay even on a flash
• Power supply on USB connector (transformer and cable provided).
Carrying case X5
• Carrying case with machined foam for 5 tecnoPAK and 5 chargers.
Professionnel transport case X 8
DMX HF receiver
Option which is integrated to the light fixture (set up upon order)
• Frequency 2,4GHz
• Automatic scan on 21 frequencies
• 3 DMX channels (dimmer, strobe and white)
Velcro Straps
• Set of 2 Velcro straps with magnetic plates.
Guides
and Data Sheets
Do not hesitate to consult / download our documentation for more information about our product
