The lighting mast

The lighting mast that highlights buffets, banquets, terraces or gardens in all discretion. On battery or plugged into mains, it will be perfectly adapted to your place or your event !

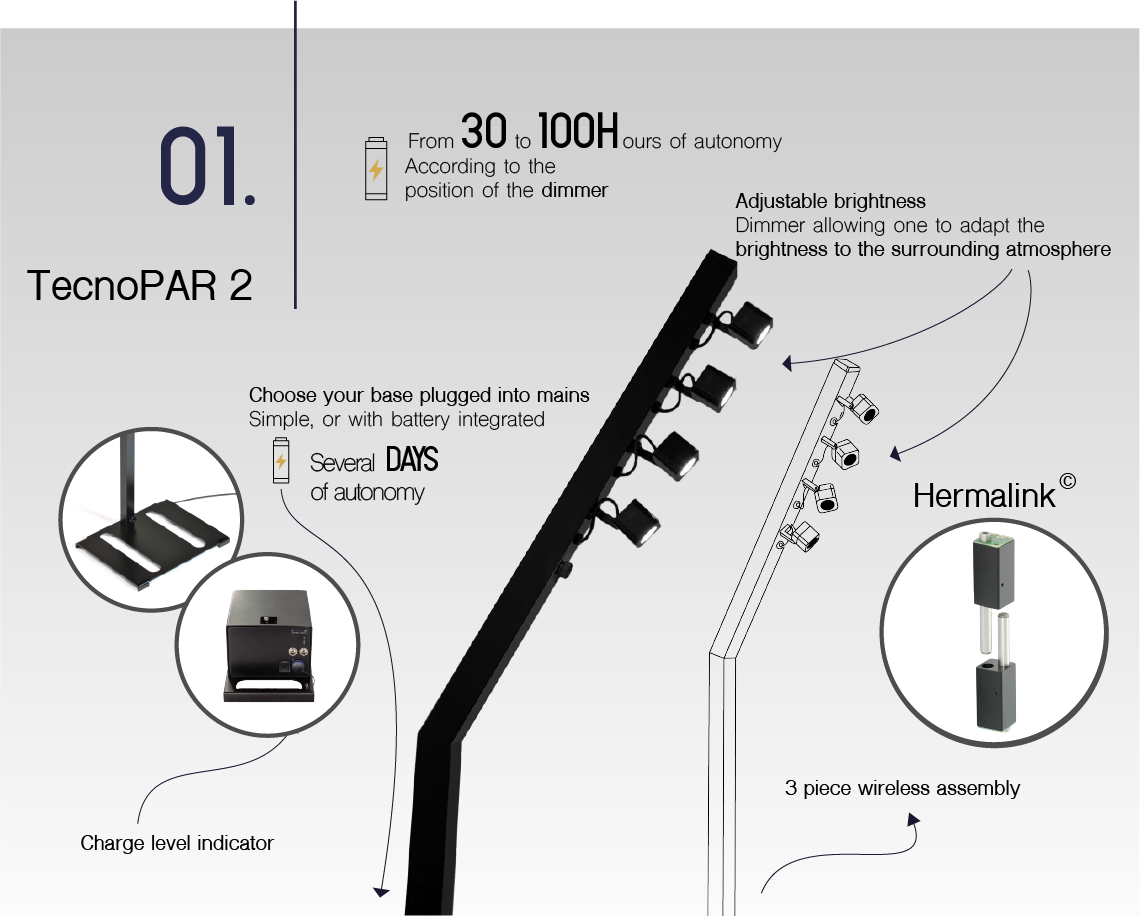

1 Adjustable
2 3 piece wireless assembly
3 Charge level indicator
 -

Lighting source

Powerful and efficient lighting

 -

Long battery life

All of our products are battery operated

 -

Made in France

Manufactured in our workshop in Montpellier

Discover the T2+ in your events !

T2+ - <p>The lighting mast that highlights buffets, banquets, terraces or gardens in all discretion. On battery or plugged into mains, it will be perfectly adapted to your place or your event !<br></p> | Innled
Composition
  • Head with 4 spotlights
  • Intermediate tube
  • Battery base or large base
Materials
  • Tube and spotlights : alumin- ium
  • Base : steel
LED Spot Power
  • 12W (4 x 3W)
Technology
  • LED Cree 3W 1A
Lighting source
  • 1200 lumens
Autonomy
  • From 30 to 100h according
  • to the setting of the dimmer
Temperature range
  • 0°C to +40°C
Dimensions
  • L136cm x l44cm x H60,5cm
Weight
  • On battery base : 10,5kg
  • On large base : 5,5kg
Warranty
  • 2 years
Norm
  • On battery : Class I, IP20, IK08, CE, EN 60598
  • On power supply : Class II, IP20, IK08, CE, EN 60598
Flightcases
  • Flightcase x 2
  • Flightcase x 4
  • Flightcase x 4+
  • Flightcase x 6
  • Flightcase x 6+
Finition
  • Epoxy-coated paint
  • In stock : Black RAL9005
  • Upon order : Contact us for any other RAL colours
Height
  • Standard : 2,30m (intermediate tube 1,25m)
  • Upon order : 2,05m (intermediate tube option 1,05m)
Colour temperature
  • Standard : 4000K (neutral white)
  • Upon order : 3000K (warm white)
Optical lenses
  • Standard : 16°
  • Upon order : 6° / 26° / 46° / asymmetrical 38°x21°
External charger
  • Battery base
  • Power supply : 90 - 240V AC Connector : Mini XLR3 Neutrik Autonomy : 30h / 1 TecnoPar or 10h / 3 TecnoPar
  • Large base
  • External power supply 110 - 230V AC
  • 24V DC on Mini XLR3 Neutrik

Accessories

Flight case 6

Flight case 6

- 6 lamp heads

- 6 intermediate tubes : 1,05m or 1,25m

- 6 compartment for battery bases

• Dimensions : L136cm x l44cm x H60,5cm

• Weight : 14kg

Flight case 6+

Flight case 6+

- 6 lamp heads

- 6 intermediate tubes : 1,05m or 1,25m

- 6 compartment for large bases - 4 compartment for battery bases - 2 extra storage compartments

• Dimensions : L136cm x l56cm x H60,5cm

• Weight : 16kg

Flightcase 2

Flightcase  2

• Flightcase 2

- 2 lamp heads

- 2 intermediate tubes : 1,05m or 1,25m

- 2 compartment for large bases - 2 compartment for battery bases

• Dimensions : L136cm x l33cm x H42cm

• Weight : 10kg

12V DC power supply

12V DC power supply

110 – 240AC charger, 12V DC • 90-230V – 12V DC

• Power jack 2mm connector

• Charging time : 3-4h



Battery base

Battery base

• Material

Base : steel

• Finish

Epoxy-coated paint

In stock : Black RAL9005

Upon order : Grey RAL9006

• Power supply

90 -240V AC on Powercon connector (supplied)

• Consumption

60W max

• Outputs

3 of 24V DC on Mini XLR3 Rean Neutrik

• Autonomy

- 10h (max) / 50h (min) for 1 TecnoPAR,

- 3h30 (max) / 17h (min) for 3 TecnoPAR

• Batteries

- 2 batteries sealed lead AGM 7,6A/h

• Class and norm

Class I , IP20, IK08, CE, EN 60598

• Dimensions : 240 x 180 x 130 mm • Weight : 10,6 kg

Large base

Large base

• Dimensions

360 x 285 x 80 mm

• Weight

3,6 kg

• Materials

Base : steel

Epoxy-coated paint

In stock : Black RAL9005 Upon order : Grey RAL9006

Extension cable 5M

Extension cable 5M

Extra flexible extension cable Ø 4,5 mm

Male/female mini XLR3 Rean – Neutrik connector

Extension cable 10M

Extension cable 10M

Extra flexible extension cable Ø 4,5 mm

Male/female mini XLR3 Rean – Neutrik connector

Extension Tube 1M

Extension Tube 1M

Intermediate tube of 1,05 m, allowing to reduce the total height of the light mast to 2,10 m.

Guides
and Data Sheets


Do not hesitate to consult / download our documentation for more information about our product

Download 3D views T2+

More information
