T4 et T4 Color

T4 et T4 Color

The universal lighting mast

A minimalist design with precise attention to detail, a large autonomy, a powerful and directional light and a surprising assembly system, meet the assets of the latest in the series.

Version RVB

2020 will have marked an entire generation, re-defining concepts of freedom, solidarity and engagement.

The T4 Color is the expression of this new energy, this rediscovered freedom, so essential to change.

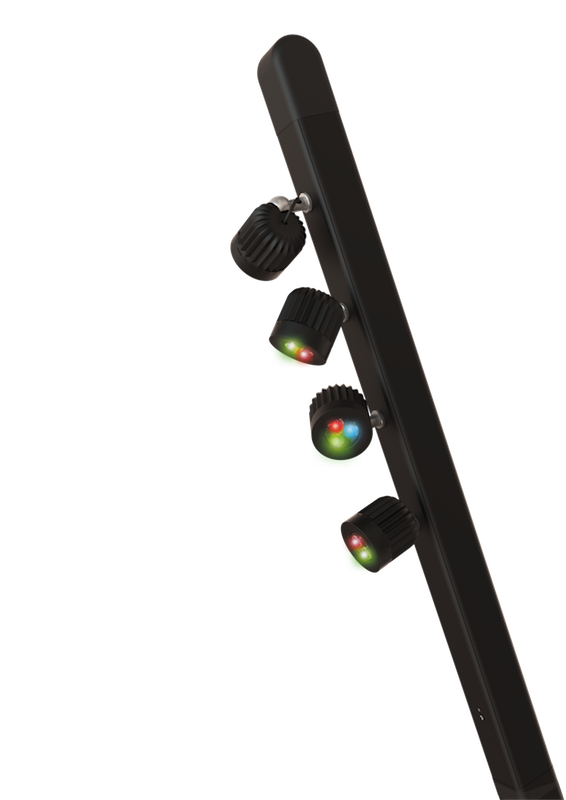

Latest release of the T4 range, the T4 Color is the first RGB lighting mast.

So what are we waiting for ? Release the Color !

T4 et T4 Color - The universal lighting mast - Innled

Passez votre souris pour plus d'infos

Remote-controlled
  • LAKO remote
  • DMX HF
Vertical or inclined
  • 180° rotation
  • Hermalink® and Hermatwist® assembly systems
Finish
  • Powder-coated epoxy paint
  • Black or white
Light efficiency
  • 4 x 4.5 W
  • CCT tunable White, 3000K, 4000K or RGB
  • Integrated dimmer
Integrated battery
  • Up to 110h autonomy
Base
  • Open version
  • Full version
LED power
  • 4,5 W
Composition
  • Reversible head (vertical or inclined) including 4 spotlights + Li-Ion battery module + Extension module + Base
Materials
  • Extruded aluminium profile 6106T5
  • AS13 Injected aluminium Spotlight
  • Hermalink® and Hermatwist ® : injected polypropylene and stainless steel pins
  • HF cap : injected 6-6 polyamide
  • Steel base
Finition
  • Powder-coated epoxy paint
  • Anthracite grey (2100ST) or White (RAL9003 fine texture)
  • Contact us for colour customization
LED Spot Power
  • 18W (4 x 4,5 W)
Technology
  • LED Cree XPG2 HE
Lighting source
  • Up to 2000 lumens
Colour temperature
  • Blanc variable (3000K - 4000K - 5000K)
  • RGB
  • 3000K
  • 4000K
Autonomy
  • 30 to 110h depending on the setting
Temperature range
  • 0°C to +40°C
IP class
  • IP43
  • IK08
Dimensions
  • Vertical : 2,36m
  • Inclined : 2,30m
Weight
  • 6,5 Kg
DMX HF
  • Integrated
  • With Lako RF remote (additional)
  • Or with RF transmitter (additional)
Warranty
  • 2 years
  • Li-Ion battery 6 months in normal use
Norm
  • CE
  • EN 60598
Class
  • On battery : Class I
  • On mains : Class II
Flightcases
  • Waterproof cases for 2 or 3 T4
Battery and autonomy
  • Integrated batteries (Li-Ion 14,8V 150Wh)
  • Up to 110h autonomy
Colour temperature
  • CCT White tuning from 3000K to 5000K
  • 3000K
  • 4000K
Optical lenses
  • Standard : 26° / 35° / asymetrical 39°x24°

Accessories

Plateau stack

Designed for 4 cases
Plateau stack

• Height : 13,5 cm

• Width : 44 cm

• Length : 118 cm

• Weight : 10kg

Carrying case

Designed for 2 or 3 T4
Designed for 2 or 3 T3
Carrying case

• Height : 16 cm

• Width : 45 cm

• Length : 117 cm

• Weight : 8kg

CCT WHITE TUNING

CCT WHITE TUNING
  • 3 LED per spot : 3000K, 4000K and 5000K
  • 18W (4 x 4,5 W)
  • Programmable
  • Remote-controlled
WARM WHITE

WARM WHITE
  • 3 x 3000K LED per spot
  • 18W (4 x 4,5 W)
neutral White

neutral White
  • 3 x 4000K LED per spot
  • 18W (4 x 4,5 W)
On mains (without battery)

On mains (without battery)
  • 100-240V AC / 50-60Hz external power supply
  • 15V DC / 1,2A • Interchangeable AC plugs
  • Designed for fixed installations

Guides
and Data Sheets


Do not hesitate to consult / download our documentation for more information about our product
