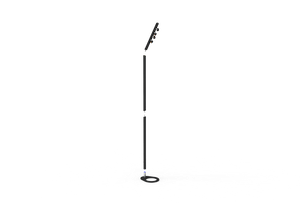

T4-E
Timeless lighting mast
Our lighting masts are evolving to take on a more sustainable role.
Determined to lead the way, the T4-E offers a new battery including reconditionned lithium-ion cells, and ensures complete compatibility with previous generations of T4s, so that their use will endure.
An identical design that offers the same autonomy, but also a few new features - including the first INNLED lighting mast version compatible with LumenRadio® systems.
Discover it now.
E for environment
The battery's lithium-ion cells, derived from the circular economy, reduce CO2 emissions by 70% compared to new cells - significantly reducing the carbon footprint of the T4-E.
Above all it's a way for INNLED to support a new European sovereignty regarding batteries.
New features to discover and a new extended warranty of 18 months applied to the battery - because we're determined to defend and encourage the path towards a more responsible production ecosystem.
Above all it's a way for INNLED to support a new European sovereignty regarding batteries.
New features to discover and a new extended warranty of 18 months applied to the battery - because we're determined to defend and encourage the path towards a more responsible production ecosystem.
E - for Efficient
In this new version, the T4-E can be controlled using LumenRadio®'s CRMX protocol.
INNLED has integrated the lighting industry’s standard and now offers 3 settings for remote controlling of the T4-E : the LAKO RF remote control, the INNLED DMX transmitter (for use with a console) and the LumenRadio® CRMX protocol.
Standardizing control systems is also a simple way of limiting over-equipment.
INNLED has integrated the lighting industry’s standard and now offers 3 settings for remote controlling of the T4-E : the LAKO RF remote control, the INNLED DMX transmitter (for use with a console) and the LumenRadio® CRMX protocol.
Standardizing control systems is also a simple way of limiting over-equipment.
E - for Equivalent
The T4-E offers improved features integrated into an identical design, allowing all T4 versions to be mixed and matched within the same event.
It also retains the ability to vary in height thanks to two additional extension tubes, 265mm and 500mm. Depending on how these extensions are assembled, the T4-E can be mounted at 1m60, 2m15, 2m30 or 2m80 (+ballast). .
It also retains the ability to vary in height thanks to two additional extension tubes, 265mm and 500mm. Depending on how these extensions are assembled, the T4-E can be mounted at 1m60, 2m15, 2m30 or 2m80 (+ballast). .
Move your mouse over for more info
Remote controlling
- LAKO remote with integrated DMX RF
- RF transmitter - console application only
- LumenRadio® option
Straight or inclined
- 180° rotation of the spotlights

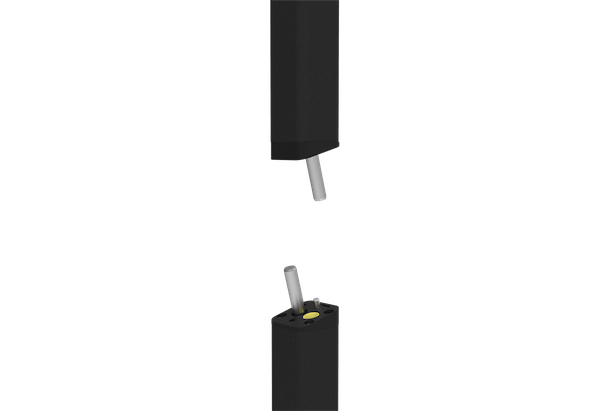

- Hermalink® and Hermatwist® assembly systems
Finish
- Powder-coated epoxy paint
- Black (2100ST) or white (RAL 9003)
Light efficiency
- 4 x 4.5 W
- CCT tunable White
- 3000K
- 4000K
- RGB
- Integrated dimmer
Integrated battery
- Built in charger
- Lithium-ion cells derived from circular economy
- Up to 110h of autonomy

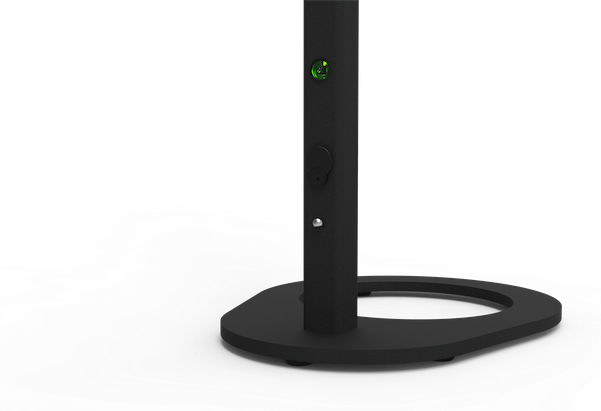

Bases
- Open base (+ ballast option)
- Full base
Composition
- 180° reversible head with 4 spotlights + New Li-ion battery module + New extension tube + Open base (or full base on demand)
Materials
- Extruded aluminium profile 6106T5 • AS13 Injected aluminium spotlight • Hermalink® and Hermatwist® : • Hermalink® and Hermatwist® : injected polypropylene and stainless steel pins • RF cap : injected 6-6 polyamide • Steel base and ballast
Finition
- Powder-coated epoxy paint • Anthracite grey 2100ST (sanded) • White RAL 9003 (textured) • Contact us for colour customization
Electric power
- 18W (4 x 4,5 W)
LED Spot Power
- 4,5 W
Technology
- LED Cree XPG3 HE
Lighting source
- Up to 2000 lumens
Colour temperature
- CCT tunable white (3000K - 4000K - 5600K)• 3000K• 4000K• RGB
Autonomy
- 11h at full • Up to 110h autonomy depending on the setting of the dimmer
Temps de charge
- Less than 8h
Temperature range
- 0°C to 40°C
IP class
- IP32 • IK08
Dimensions
- Vertical : 2,36m • Inclined : 2,30m
Weight
- 6,1kg
DMX HF
- Integrated • With Lako RF remote control (not incl.) • With RF transmitter (not incl.) • LumenRadio® CRMX protocol
Alimentation
- 100-240V AC • 50-60Hz max 0,8A• 24,0V DC - 1,16A - 27,8W
Warranty
- 2 years on the product • 18 months on the battery in normal use
Norm
- CE• UN38.3 (ongoing)
Class
- • Classe II
Dimension
- Vertical : 2,36m• Inclined : 2,30m
Flightcases
- Waterproof cases • Up to 3 T4-E per case • Charging of products directly in the cases
Chargeur
- Integrated chargers
Battery and autonomy
- Integrated battery (Li-Ion 14,8V 140Wh)• Reconditionned li-ion cells • Charger integrated in the battery
Option upon order
accessories
Plateau stack
Designed for 4 cases
• Height : 13,5 cm
• Width : 44 cm
• Length : 118 cm
• Weight : 10kg
T4-E carrying case
• Height : 16 cm
• Width : 45 cm
• Length : 117 cm
• Weight : 8kg
• Specific design for T4-E range with green clasps
