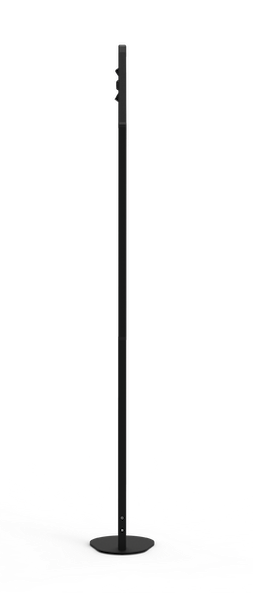

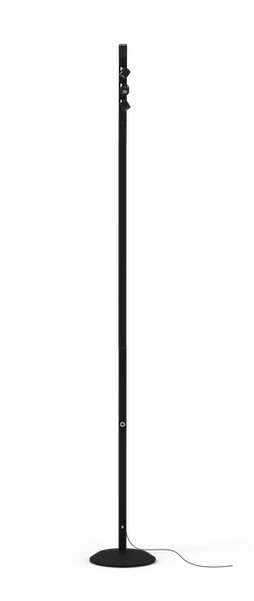

The lighting mast for fixed installations


The new T3 mast is the first mast of the range on mains.


It
is designed to meet the needs of your various projects from interior
designing to integration, in sectors as varied as events, museography,
hospitality, catering, retail or office spaces.


Add the features you need

Choose from multiple options to create a mast which includes the
essential features for your activity or venue; enjoy the product and its
surprising simplicity !

T3 - The lighting mast for fixed installations - Innled

Passez votre souris pour plus d'infos

Pilotage à distance (option)
  • • Télécommande Lako
  • • Émetteur DMX
LED CCT Blanc variable (option)
  • • 3 LEDs par spot : 3000K, 4000K, 5000K
  • • 13,5W (3 x 4,5 W)
Embase ajourée (option)
  • • Acier
  • • Révèle et met en lumière parquets, marbres et sols classés
LED HIGH CRI >90 (option)
  • • Spots équipés de LED CREE XPG2-HE avec CRI > 90
  • • Idéal pour l’éclairage Broadcast ou Muséographique
Batterie amovible (option)
  • • Batterie Li-Ion 14,8V 50Wh
  • • Système aimanté Plug-and-Play
  • • 6h à 30h d’autonomie
  • • Chargeur rapide 90 à 240V AC
  • • 14,4V DC 1,5 A max
Malette étanche
  • • Pour 2 x T3 + batteries OU 3 x T3 sur secteur
  • • Dim. ext. 1177 X 440 X 158 mm
Composition

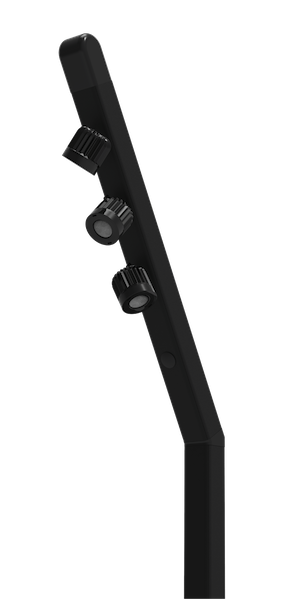

  • 1x Tête inclinée à 3 spots LED orientables l=370mm 2x Rallonges l=850mm 1x Embase pleine Embase ajourée en option
Materials
  • Tube and spotlights : alumin- ium
  • Base : steel
Finition
  • Peinture époxy thermolaquée
  • Noir RAL 9005 fine texture
LED Spot Power
  • 13,5W (3 x 4,5W)
Technology
  • LED Cree XPG2 HE
Lighting source
  • Jusqu’à 1400 lumens
Colour temperature
  • Standard : 3000K ou 4000K
  • (à la commande)
  • CCT Blanc variable en option
  • LED HIGH CRI >90 en option
Autonomy
  • 6h à 30h en fonction du réglage du dimmer (avec option batterie amovible)
Temperature range
  • -0°C à +40°C
IP class
  • IP43
Dimensions
  • Hauteur 2m10
Weight
  • Sur embase batterie : 10,5kg • Sur embase large : 5,5kg
Warranty
  • 5 ans
Norm
  • Classe II
  • IK08
  • CE
  • EN 60598
  • Sur transformateur : Classe II, IP20, IK08, CE, EN 60598
Connexions
  • Bloc secteur externe fournis
  • 90 à 240V AC - 18V DC - 1,5A
Flightcases
  • Conditionnement en carton
  • Conditionnement en malette (option)
Finition
  • Epoxy-coated paint
  • In stock : Black RAL9005
  • Upon order : Contact us for any other RAL colours
Height
  • Standard : 2,30m (intermediate tube 1,25m)
  • Upon order : 2,05m (intermediate tube option 1,05m)
Colour temperature
  • Standard : 4000K (neutral white)
  • Upon order : 3000K (warm white)
Optical lenses
  • Standard : 16°
  • Upon order : 6° / 26° / 46° / asymmetrical 38°x21°
External charger
  • Battery base
  • Power supply : 90 - 240V AC Connector : Mini XLR3 Neutrik Autonomy : 30h / 1 TecnoPar or 10h / 3 TecnoPar
  • Large base
  • External power supply 110 - 230V AC
  • 24V DC on Mini XLR3 Neutrik

Accessories

Flight case 6

Flight case 6

- 6 lamp heads

- 6 intermediate tubes : 1,05m or 1,25m

- 6 compartment for battery bases

• Dimensions : L136cm x l44cm x H60,5cm

• Weight : 14kg

Flight case 6+

Flight case 6+

- 6 lamp heads

- 6 intermediate tubes : 1,05m or 1,25m

- 6 compartment for large bases - 4 compartment for battery bases - 2 extra storage compartments

• Dimensions : L136cm x l56cm x H60,5cm

• Weight : 16kg

Flightcase 2

Flightcase  2

• Flightcase 2

- 2 lamp heads

- 2 intermediate tubes : 1,05m or 1,25m

- 2 compartment for large bases - 2 compartment for battery bases

• Dimensions : L136cm x l33cm x H42cm

• Weight : 10kg

Plateau stack

Designed for 4 cases
Plateau stack

• Height : 13,5 cm

• Width : 44 cm

• Length : 118 cm

• Weight : 10kg

Carrying case

Designed for 2 or 3 T4
Designed for 2 or 3 T3
Carrying case

• Height : 16 cm

• Width : 45 cm

• Length : 117 cm

• Weight : 8kg

12V DC power supply

12V DC power supply

110 – 240AC charger, 12V DC • 90-230V – 12V DC

• Power jack 2mm connector

• Charging time : 3-4h



Battery base

Battery base

• Material

Base : steel

• Finish

Epoxy-coated paint

In stock : Black RAL9005

Upon order : Grey RAL9006

• Power supply

90 -240V AC on Powercon connector (supplied)

• Consumption

60W max

• Outputs

3 of 24V DC on Mini XLR3 Rean Neutrik

• Autonomy

- 10h (max) / 50h (min) for 1 TecnoPAR,

- 3h30 (max) / 17h (min) for 3 TecnoPAR

• Batteries

- 2 batteries sealed lead AGM 7,6A/h

• Class and norm

Class I , IP20, IK08, CE, EN 60598

• Dimensions : 240 x 180 x 130 mm • Weight : 10,6 kg

Large base

Large base

• Dimensions

360 x 285 x 80 mm

• Weight

3,6 kg

• Materials

Base : steel

Epoxy-coated paint

In stock : Black RAL9005 Upon order : Grey RAL9006

Extension cable 5M

Extension cable 5M

Extra flexible extension cable Ø 4,5 mm

Male/female mini XLR3 Rean – Neutrik connector

Extension cable 10M

Extension cable 10M

Extra flexible extension cable Ø 4,5 mm

Male/female mini XLR3 Rean – Neutrik connector

Extension Tube 1M

Extension Tube 1M

Intermediate tube of 1,05 m, allowing to reduce the total height of the light mast to 2,10 m.

Guides
and Data Sheets


Do not hesitate to consult / download our documentation for more information about our product

Download 3D views T3
