DMX HF Transmitter

0.

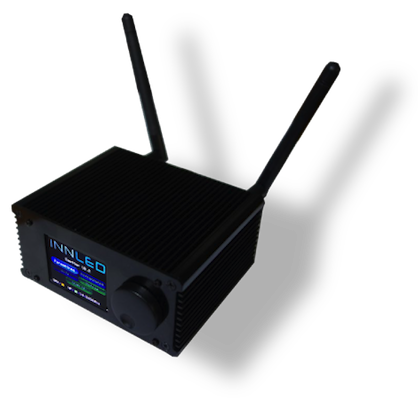

DMX HF Transmitter

This new wireless transmitter provides all the same functionnnalities as its predecessor. Fitted with a colour LCD screen and a rotary knob, the navigation within the menu is now much simpler.

New modes automatically detect the available channels and avoid interferences. The choice of the channels becomes elementary and your lamp is connected in a matter of minutes

1 LCD screen with HF sniffer
2 31 possible universes
3 300M Open field range
Electric power
  • (2,4Ghz) : 20db (100mW)
Temperature range
  • 0° to +40°C
Dimensions
  • L 100 x l 85 x H 48mm
Weight
  • +/- 300g
Alimentation
  • By USB port
  • DC USB 5V
Norm
  • CE
Frequence
  • 2 1
Universe and canals
  • 31
  • 15872 channels
Antenna
  • 1db articulated external
  • SMA connector
Inputs
  • USB “OPEN DMX” input
  • 5 point XLR DMX input
  • 1 Art Net universe on the access point input
Output
  • 5 point reboosted XLR output
Security
  • SSID and wifi password predefined choice
  • WPA2 security on Wifi
Protocol
  • W2.4EC-DMX-A ET B

Guides
and Data Sheets


Do not hesitate to consult / download our documentation for more information about our product

More information
