Lapps

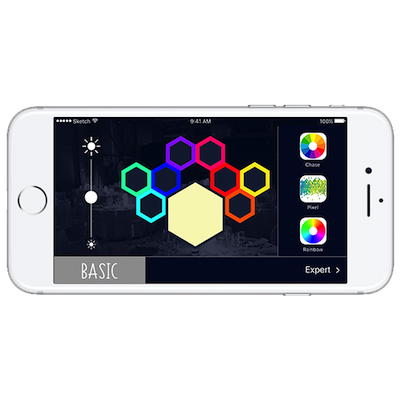

Control one or several lamps from a distance thanks to L’APPS, the connected app.
- Thanks to a simple and intuitive interface, you can access a variety of colours, adjust the light intensity and chose the appropriate effects for your event.
- To adapt the light to your atmosphere, chose between the Basic or the Expert mode.
- Select your colour from a basic range or create your own composition with the interactive console.
L’APPS is connected to a wifi / wireless DMX transmitter allowing a simplified connexion within all your spaces.
1 Simple & Intuitive
2 Wifi & wireless DMX
3 Custom lighting
Discover Lapps on video
Electric power
- Supplied. DC 5V USB
Weight
- 0,25 kg
DMX HF
- 2,4GHz band
- 512 DMX channels
- Entries
- - DMX in on XLR3
- - « OPEN DMX » on USB
- - Art-Net in (on access point)
- Buffer on DMX out
- Open field range 300m
- DMX adressing via Menu
- 21 selectable frequencies
- 31 DMX universes
- Diversity mode 2 channels
- No latency, even on a flash
Warranty
- 2 years
Norm
- W2.4EC-DMX-A
- IP20 IK06
- Class II
Addressing
- Fixed, for 32 lamps of 6 DMX channels : dimmer, strobe, red, green, blue, warm white
Concerned products
- HARIZ
- TECNOPAK
- KUB
- TOTEM (soon)
Connexions
- DMX in and out on XLR 5
- Open DMX on USB
Os
- (Free download)
- Apple IOS 10
- Android 4.X
Dimension
- 100 x 80 x 48 mm
Access
- Wifi, 2,4GHz band
Basic Mode
- General intensity
- Warm white + 8 colours
- 3 effects (rainbow, chase, pixel)
Expert mode
- Settings page with :
- - 6 effects (2 Pulses, 2 Rain-
- bows, Pixel, Chase)
- - 5 cursors (intensity, R, G, B,
- warm white)
- - 10 fade 3s up/down
- on Intensity, R, G, B, Warm white
- Selection page from 1 to 32 lamps
Wifi hot-spot
- Connexion for the application
- Configurable SSID and pass- word
- 2,4GHz band, 20db (100mW)
- 14 selectable channels
- Entry 1 Art-Net universe
Option upon order
Guides
and Data Sheets
Do not hesitate to consult / download our documentation for more information about our product
